Composite structure diagram tutorial

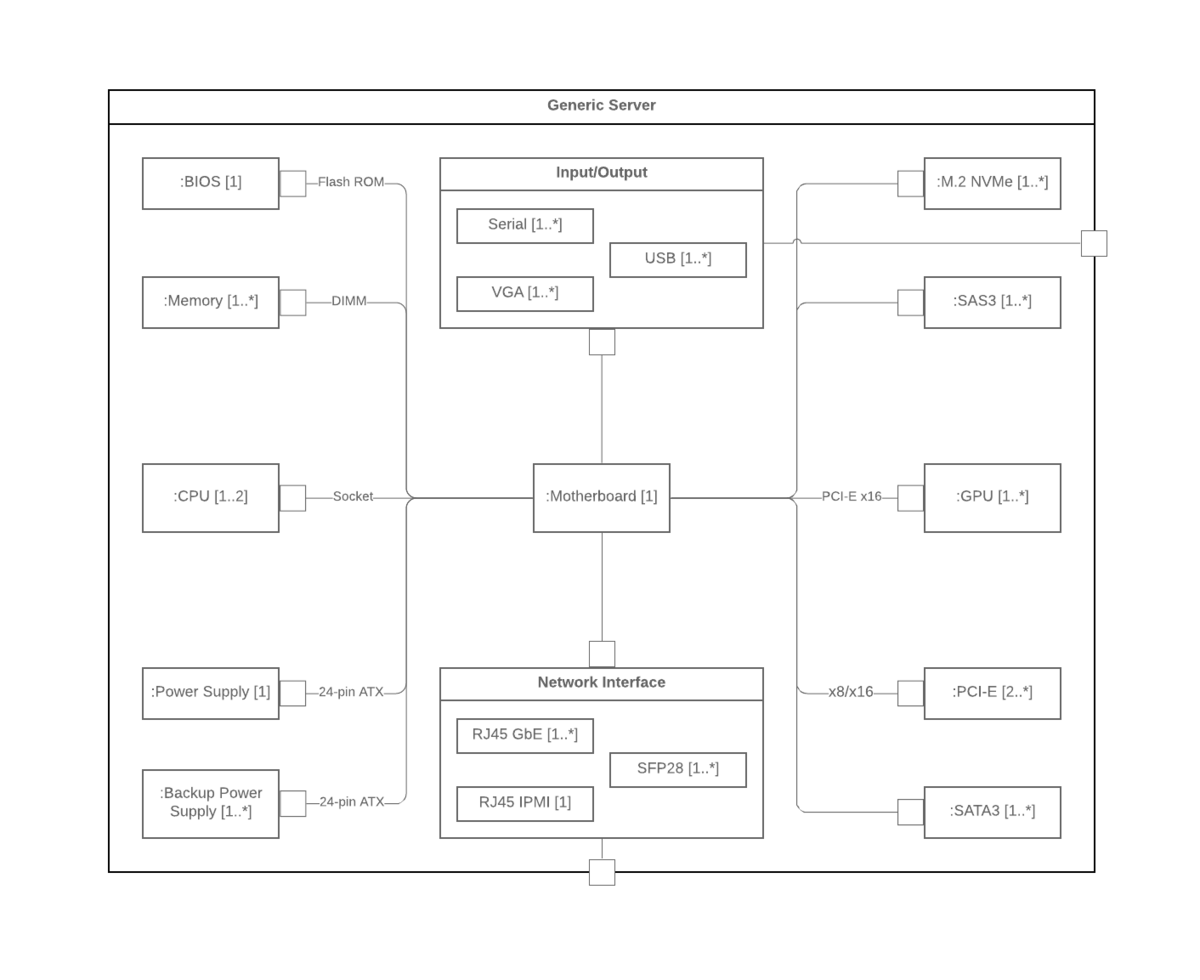

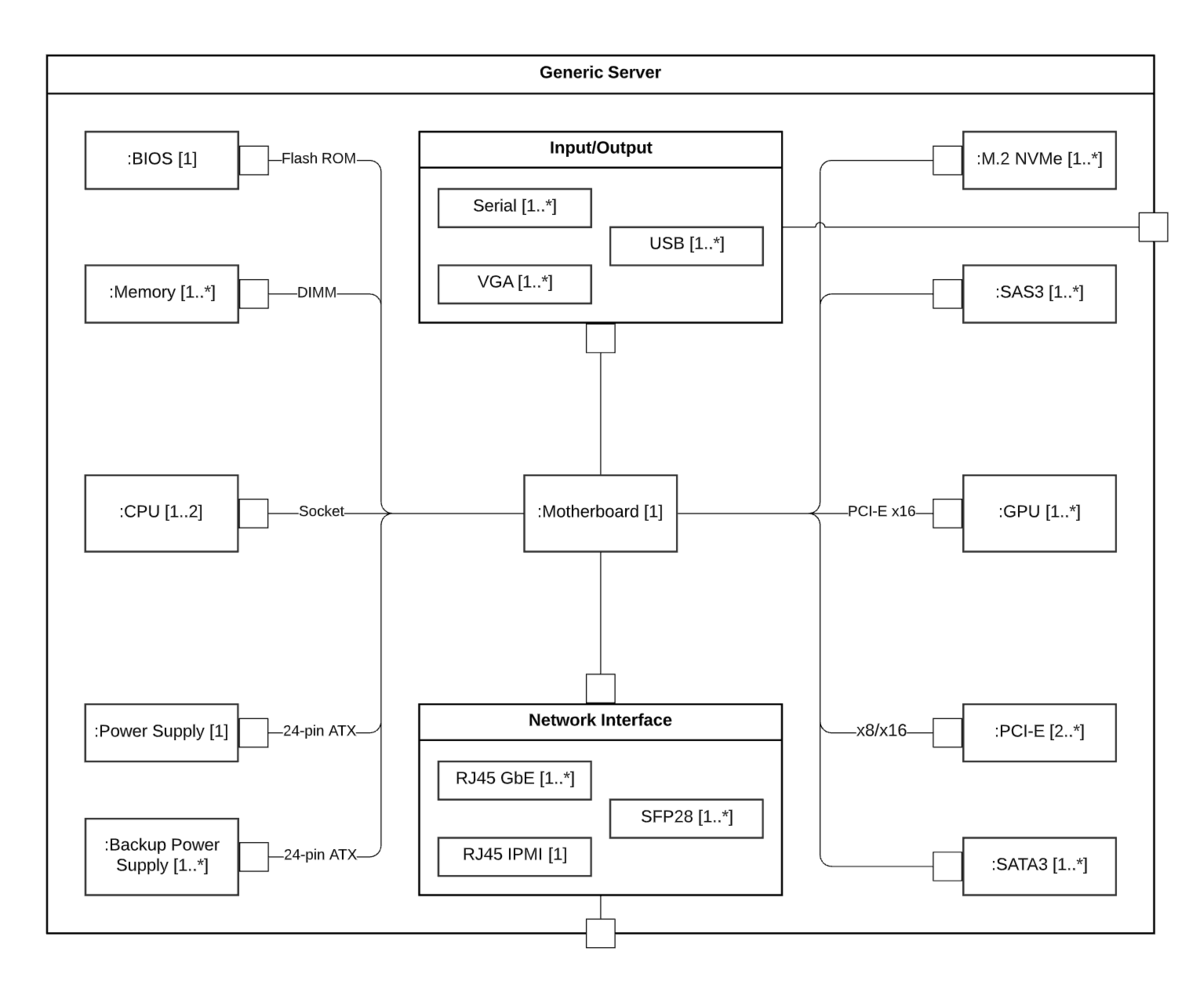

A composite structure diagram is a UML structural diagram that provides a logical overview of all or part of a software system, acting as a look inside a given structured classifier and defining its configuration classes, interfaces, packages, and the relationships between them at a micro-level.

The main components include parts (runtime instances of classes or interfaces), ports (interaction points between a classifier instance and its environment), connectors (communication links between parts), classes, interfaces, and nodes.

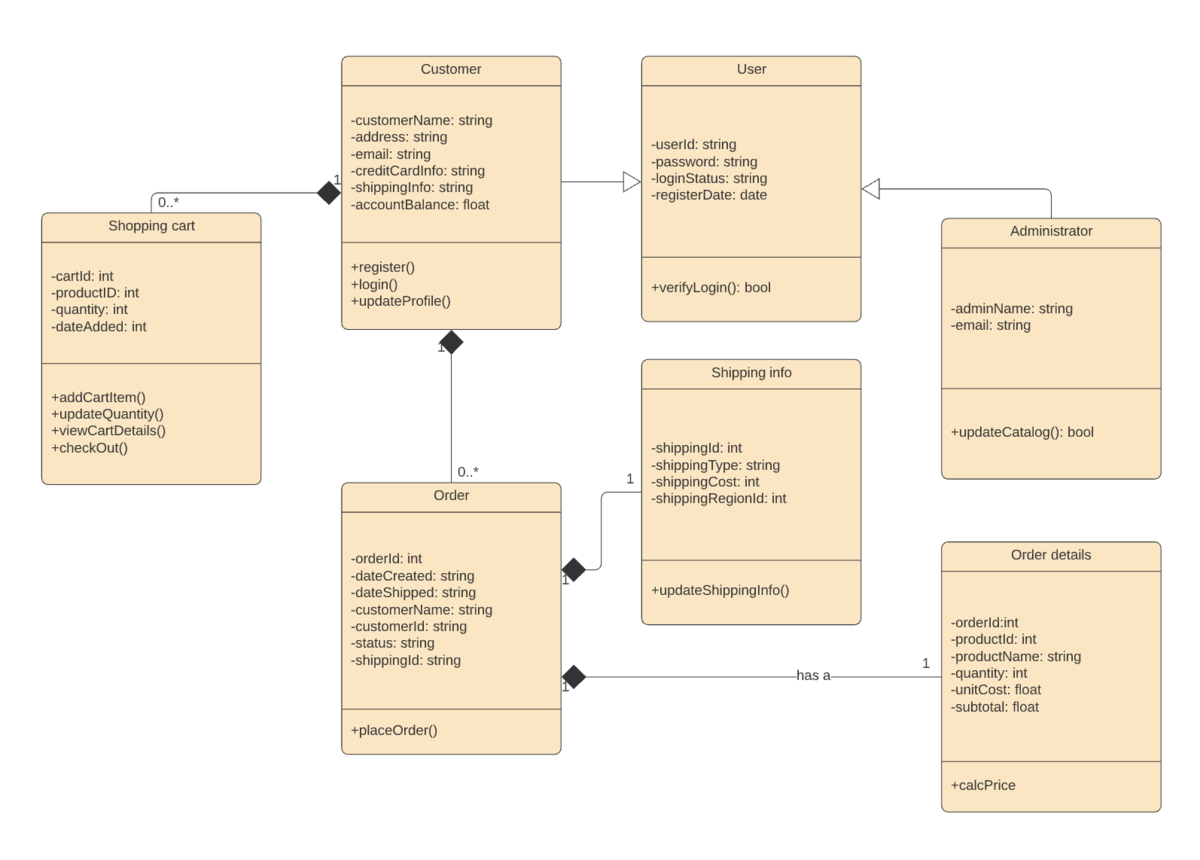

Composite structure diagrams are more specific and less ambiguous than class diagrams, allowing users to more clearly model the implementations of an artifact's activity within a runtime and depict the internal structure of multiple classes and their relationships with concrete, explicit information.

Composite structure diagrams help users understand the current state of their system, break down the internal structure of multiple classes and their interactions, detail runtime architectures and usage patterns not found in static diagrams, and provide information to optimize and troubleshoot systems.

A port acts as an interaction point between a classifier instance (or its behavior) and its environment, allowing internal parts to communicate with external systems.

A connector illustrates communication between parts within the system, showing how different components exchange information or collaborate.

Use a composite structure diagram when you need to see exactly what is contained within an object, specify how different properties fit together to produce a certain behavior, or convey concrete information about the behaviors and relationships within your system.
